Lake & Pond Bathymetry — Depth Maps Without a Boat

Drone-mounted sonar profiles lakes, ponds, lagoons, and stormwater basins from above the surface: full depth contours and volumes with no boat launch, no dive crew, and no one on the water.

Why Depth Maps Get Ordered

Almost every question about a water body eventually becomes a depth question. How much capacity does the stormwater pond actually have left? What volume is the treatment dose based on? How deep is the lagoon cell, really, after fifteen years of accumulation? Where are the holes and the shallows in the lake the association manages? What did the as-built basin actually get built to?

Most of these questions go unanswered for years because the traditional answer — a boat, a crew, a day on the water — is disproportionate to the size of the pond. Drone bathymetry removes that barrier: the sonar flies, the water stays undisturbed, and a pond that would never justify a boat survey gets a real depth map in an afternoon.

How It Works

Drone-mounted echo sounder. A single or dual-frequency sonar is flown on a precise grid just above the water surface, logging depth continuously with RTK positioning per sounding.
Dual frequency where it earns its place. High frequency resolves the top of soft sediment; low frequency penetrates to the firmer bottom beneath it. The difference between the two is the soft-sediment layer — often the number the whole project is about.
GPR over fresh water where conditions favor it. Shallow, weed-choked, or turbid water that gives sonar trouble is often exactly where radar bathymetry works well. We carry both and use whichever the water calls for.
No wake, no disturbance. Nothing touches the water. Sensitive shorelines, active operations, and stocked ponds stay exactly as they were.

Deliverables

Depth contour map — clean bathymetric contours at the interval your project needs
Water volume — total and stage-volume tables where the application calls for them (treatment dosing, capacity planning, drawdown analysis)
Bottom surface model — GIS and CAD-ready TIN or grid of the bed
Soft-sediment thickness where dual-frequency data supports it
Survey report — method, positioning, calibration, coverage, and confidence, stated plainly

Where This Gets Used

Municipal stormwater ponds and detention basins due for capacity verification; wastewater and industrial lagoons ahead of cleaning contracts; lake associations and park districts mapping their water for management and safety; golf course irrigation ponds; aggregate pits transitioning to reclamation; and engineers who need current bathymetry as the existing-conditions layer under a design. If the question is "how deep, where, and how much water" — this is the survey that answers it.

The Honest Limits

Sonar needs enough water to work in — extremely shallow margins are profiled by GPR or extrapolated, and we mark which is which. Dense submerged vegetation can mask the bottom locally; dual frequency and flight planning mitigate it, and the report flags any area where confidence drops. Volumes are computed against the water surface elevation on survey day, which we record — for stage-dependent basins, that datum matters and we treat it accordingly.

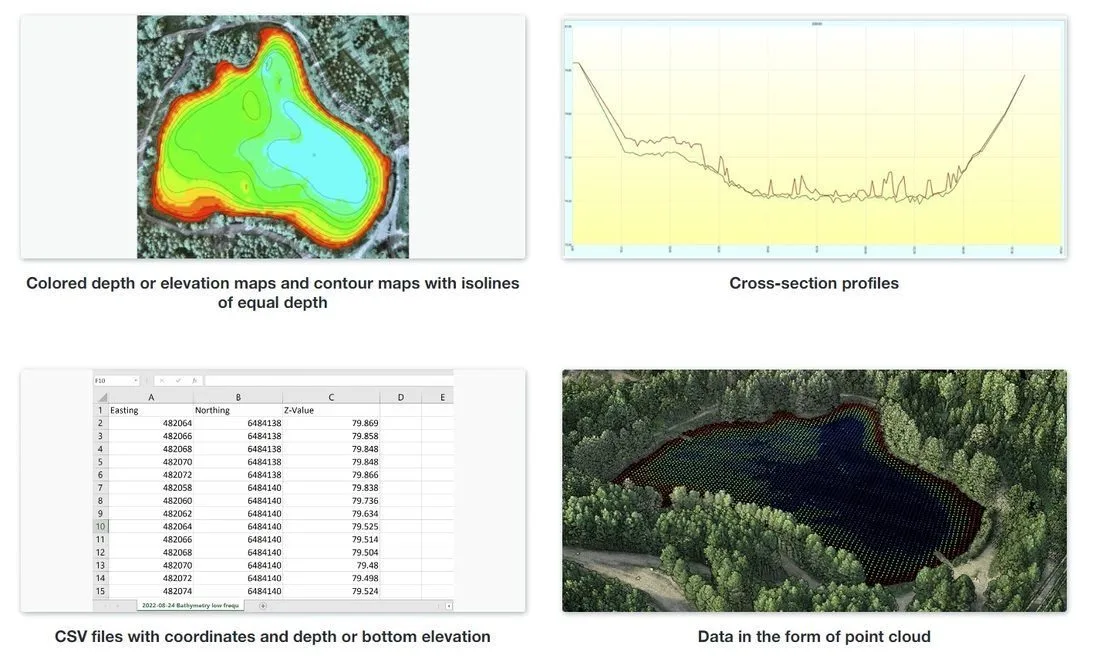

Bathymetric survey deliverable showing a color-coded depth map with contours

The deliverable: a depth-contoured map of the whole water body — the answer to "how deep, where, and how much water" on one sheet.

Northern Drone provides geophysical and aerial data-acquisition services. We are not a licensed land surveying or engineering firm, and "survey" on this page is used in the data-collection sense. Read the full licensure disclosure.

Frequently Asked

Questions About This Service

How small a pond is worth surveying?▾

Smaller than you would think. Because there is no boat launch and no crew on the water, the mobilization for a two-acre stormwater pond is modest — which is exactly why ponds that never justified a traditional survey finally get real depth data. If the answer matters to a budget, a dose, or a dredging contract, it is worth measuring.

How accurate are the depths and volumes?▾

Each sounding is RTK-positioned and the sonar is calibrated for the water it is measuring; depth accuracy is typically within a few centimeters in reasonable conditions. Volume accuracy follows coverage — a tight grid on a simple basin produces a number you can contract against, and the report states the confidence rather than implying more than the data supports.

Can you measure the soft sediment on the bottom?▾

Often, yes. Dual-frequency sonar reads the top of the soft layer at high frequency and the firmer surface beneath at low frequency; the difference is the sediment blanket. That layer thickness — and the volume it represents — is usually the core question in dredging and lagoon-cleaning projects.

Do you survey water with weeds or poor visibility?▾

Yes — sonar does not care about visibility, and turbidity is irrelevant to it. Dense vegetation is the harder case: it can mask the bottom locally. We plan flights around it seasonally where possible, use GPR over fresh water where it outperforms, and flag any low-confidence areas in the report instead of smoothing over them.
